In 2014, a bunch of scientists at Stanford University launched Foldscope, a handheld microscope made virtually completely out of paper, which takes half-hour to put collectively, and which might seize pictures of cells. So far, thousands and thousands of individuals – particularly schoolchildren – world wide have taken pictures of the microscopic world with Foldscopes, whereas dozens of scientific research have been carried out with the assistance of this instrument. Its value? Rs 400.
Foldscope democratised the world’s entry to optical microscopy. Now, researchers at Winona State University, Minnesota, have created a design for a ‘glowscope’, a tool that would democratise entry to fluorescence microscopy – not less than partly so.
What is fluorescence microscopy?
An optical microscope views an object by finding out the way it absorbs, displays or scatters seen gentle. A fluorescence microscope views an object by finding out the way it reemits gentle that it has absorbed, i.e. the way it fluoresces. This is its fundamental precept.
The object is illuminated with gentle of a selected wavelength. Particles within the object take up this gentle and reemit it at the next wavelength (i.e. completely different color). These particles are known as fluorophores; the item is infused with them earlier than being positioned underneath the microscope.
There are variations of fluorescent microscopes with extra refined talents, corresponding to epifluorescence and confocal laser-scanning microscopes.
When the fluorophores fluoresce, a fluorescent microscope can observe them as they transfer inside the item, revealing the item’s inside form and different traits. For instance, a fluorophore known as the Hoechst stain binds to DNA and is happy by ultraviolet gentle. So a tissue pattern collected from an individual might be injected with the Hoechst stain and positioned underneath a fluorescent microscope. When the pattern is illuminated by ultraviolet gentle, the stain absorbs the sunshine and reemits it at the next wavelength. The microscope will level out the place that is occurring: within the nuclei of cells, the place DNA is situated. This means, the nuclei within the tissue could be labelled for additional research.
Scientists have developed completely different fluorophores to establish and research completely different entities, from particular components of DNA to protein complexes. On the flip aspect, fluorescence microscopes value not less than a lakh rupees, however typically up to crores.
How does the brand new gadget enhance entry?
In the brand new research, researchers from Winona State University have described a rudimentary fluorescence microscope that they are saying could be put collectively at a price of $30-50 (Rs 2,500-4,100). Many people in India will not be in a position to afford this, however schools and faculties can.
The scientists wrote of their paper: “We demonstrate the ability of these devices … to detect green and red fluorophores and to monitor and detect changes to heart rate and rhythmicity in embryonic zebrafish.”
Their setup consists of two plexiglass surfaces, an LED flashlight, three theatre stage-lighting filters, a clip-on macro lens, and a smartphone. The smartphone (with the lens hooked up) is positioned on one floor that’s suspended at a top (say, a foot above). The second sheet is positioned beneath and holds the item.
A schematic diagram of the ‘glowscope’ setup. The elements differ primarily based on which fluorophore is getting used.
| Photo Credit:
Schaefer, M.A., Nelson, H.N., Butrum, J.L. et al. A low-cost smartphone fluorescence microscope for analysis, life science schooling, and STEM outreach. Sci Rep 13, 2722 (2023). https://doi.org/10.1038/s41598-023-29182-y (CC BY 4.0 International)
In their research, the objects have been zebrafish embryos in a petri dish, ready in accordance to well-established tips to guarantee they aren’t harmed. They have been injected with completely different fluorophores relying on which a part of the embryos have been of curiosity. The sources of illumination have been additionally LED flashlights emitting gentle of correspondingly completely different wavelengths.
One of the stage-lighting filters was held between the flashlight and the item and the opposite two have been held between the item and the smartphone. The position of those filters was to be certain that gentle of the correct frequency reached the item and that fluoresced gentle of an acceptable frequency reached the digital camera.
What did they observe?
With this setup, the researchers have been in a position to picture the creatures’ mind, spinal wire (utilizing a fluorophore known as DsRed), coronary heart (mCherry), and head and jaw bones (mRFP). They have been in a position to zoom out and in utilizing the smartphone digital camera and the clip-on lens, and by adjusting the gap between the pattern and the smartphone platforms.
The components of the zebrafish noticed utilizing the setup proven above. The fluorophores used are (b) memGFP, (c) EGRP, and (d) EGFP.
| Photo Credit:
Schaefer, M.A., Nelson, H.N., Butrum, J.L. et al. A low-cost smartphone fluorescence microscope for analysis, life science schooling, and STEM outreach. Sci Rep 13, 2722 (2023). https://doi.org/10.1038/s41598-023-29182-y (CC BY 4.0 International)

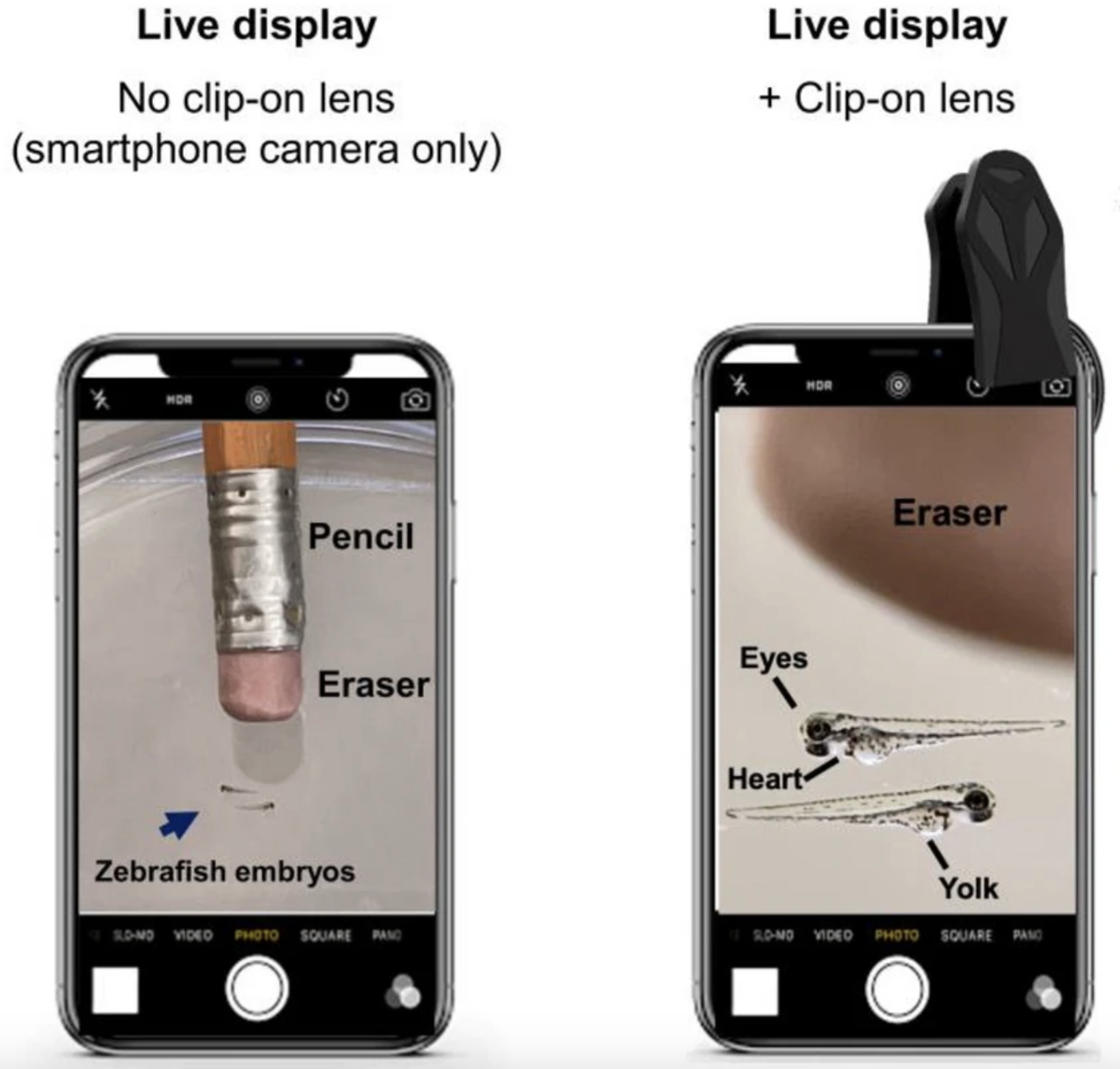

The impact of utilizing the clip-on macro lens whereas capturing a dwell video of the zebrafish.
| Photo Credit:
Schaefer, M.A., Nelson, H.N., Butrum, J.L. et al. A low-cost smartphone fluorescence microscope for analysis, life science schooling, and STEM outreach. Sci Rep 13, 2722 (2023). https://doi.org/10.1038/s41598-023-29182-y (CC BY 4.0 International)
They estimated the overall value of the setup used to acquire these pictures to be $30-50: $5-10 for the “scope frame”, composed of “plexiglass, wood, nuts, bolts, washers, paper clamps”; $10-15 for the clip-on macro lens; $3-5 for an LED lamp to typically illuminate the equipment and $10-20 for the LED flashlight to illuminate the fluorophores; and fewer than $1 for the filters.
Is the ‘glowscope’ actually accessible?
It’s one factor to arrange a fluorescence microscope utilizing merchandise bought on on-line marketplaces; really acquiring all the supplies required is one other. Using a ‘glowscope’ nonetheless requires entry to fluorophores, appropriate organic samples, the know-how to mix the 2, and a few information of physics to work out which LED flashlight to purchase.
The Foldscope was actually exceptional as a result of all its required elements have been easy to perceive; making ready a pattern for viewing was so simple as putting, say, a fabric fibre on a chunk of paper and inserted that in entrance of the lens; and utilizing a Foldscope was so simple as focusing its lens on the item. The ‘glowscope’ isn’t so easy.
However, the truth that a easy fluorescent microscope could be arrange with just a few thousand rupees means, as an alternative of being completely out of attain, researchers can put together samples and take them to schools, the place college students can observe them. Students in addition to researchers in resource-poor labs can even use Foldscopes and ‘glowscopes’ collectively to study extra in regards to the microscopic world.
